PSF-546 Single Vector Wet Horizontal 6,000 Amp FWDC
(Model PSF-546)
The Single-Vector Wet Horizontal Magnetic Particle Inspection Machine is designed for precise detection of surface and near-surface defects in ferromagnetic components. Using a controlled magnetic field in a single direction, it highlights cracks, seams, laps, and other discontinuities that may affect product quality.
In this system, the component is positioned horizontally and magnetized while a suspension of magnetic particles in a liquid carrier is applied. Any imperfections on or near the surface cause magnetic flux leakage, attracting the particles and forming visible indications of defects. The wet process ensures uniform coverage, excellent sensitivity, and reliable inspection results, even on complex geometries.
This single-vector configuration simplifies setup, reduces inspection time, and provides consistent performance for routine quality control operations. It is particularly suited for applications where defects are expected to align predominantly in one orientation—making it an efficient and cost-effective choice for production environments such as automotive, aerospace, and heavy engineering industries.
Standard Features
- Color Touch Screen with Virtual Instrumentation and Multiple Dynamic Ranges
- Ultra-Low Range Mode Now Standard with a 1 Amp Resolution
- Typical Shot Repeatability within 1 to 2 Counts of LSD, Even at Low Amperage Shots
- Automatic Recalibration of Dynamic Preview Synchronizes Value within 1 to 2 Counts of LSD
- NFPA 79 Compliant Electrical Panel with Cabinet Light
- Built-In, Adjustable, Operator Eye Adaption Timer
- Typical Useful Low End Down to 10 Amps!
- 240VAC / 480VAC 60Hz 3-Phase Input, 3 Phase Secondary Power Transformer
- 54" Part Capacity Between Headstock and Tailstock with Copper Pads
- 12" I.D. Coil Standard, Optional Coils Available Up to 30"
- Fully Variable - Closed Loop Current Control
- FWDC Magnetizing Waveform, Rated for 6,000 Amps
- Adjustable Operator Control Panel for Operator Convenience
- Master Power Switch Located on Operator Control Panel
- Ventilator and White Light Control Switch Located On Operator Control Panel
- Maximum Current Limitation Safety Built In
- Solid State Head and Coil Switching - No Magnetic Contactors
- Solid State Demag Switching - No Reversing Contactors
- All Sequencing is Controlled by a Single PLC Electronic Logic Unit
- Pump Operated By Solid State Contactor
- Equipped Standard With Power Line Safety Contactor
- Equiped with Controlled Break Feature Standard
- Shot Selector Switch, Supervisor Settable - Single or Dual Mag Shots
- Heavy Duty Solid Copper Buss Work Throughout
- Automag Sequencing Control with Guarded Foot Switch
- Heavy Duty Pneumatic Headstock with Guarded Foot Switch
- Heavy Duty Crank Driven Tailstock
- Heavy-Duty 1" x 3" Solid Steel Bed Rails
- Heavy Duty Coil Carriage with Sealed Wheels
- Heavy Duty Hinged & Gasketed Front Doors with Twist Latches
- Heavy Duty Gasketed Rear Access Panels with Draw Latches
- 16 Ga. Stainless Steel Tank & Hip Bar Construction
- Hard Rock Maple Grates Front and Rear with Screens Standard
- Pneumatic Filter, Regulator, Moisture Separator with Lockout Valve Included
- Paint Color - Magwerks Tan Baked Industrial Powder Coating
- Operator's / Maintenance Manual (In English
Custom Options
Please download the PDF attached for all our custom options.
For detailed requirements and specifications clarity, we encourage you to contact us directly or schedule a consultation with our technical team. Our experts are available to discuss your specific needs and provide tailored solutions for your magnetic particle inspection requirements.
Catalog Last Updated:
Note: Contact Us for Pricing*
Images

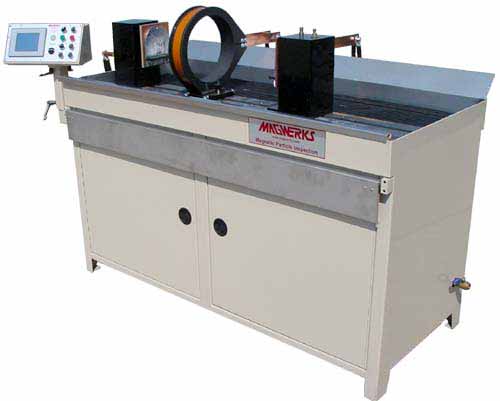

PSF-546 Single Vector Wet Horizontal 6,000 Amp FWDC
