PSAF-546, 54" Wet Horizontal MPI Machine, 5000 Amp AC & HWDC, 6000 Amp FWDC
(Model PSAF-546)
The Single-Vector Wet Horizontal Magnetic Particle Inspection Machine is designed for precise detection of surface and near-surface defects in ferromagnetic components. Using a controlled magnetic field in a single direction, it highlights cracks, seams, laps, and other discontinuities that may affect product quality.
In this system, the component is positioned horizontally and magnetized while a suspension of magnetic particles in a liquid carrier is applied. Any imperfections on or near the surface cause magnetic flux leakage, attracting the particles and forming visible indications of defects. The wet process ensures uniform coverage, excellent sensitivity, and reliable inspection results, even on complex geometries.
This single-vector configuration simplifies setup, reduces inspection time, and provides consistent performance for routine quality control operations. It is particularly suited for applications where defects are expected to align predominantly in one orientation—making it an efficient and cost-effective choice for production environments such as automotive, aerospace, and heavy engineering industries.
Standard Features
- Color Touch Screen with Virtual Instrumentation
- Multiple Dynamic Ranges Give Precise User Current Control
- Ultra-Low Range Mode Now Standard with a 1 Amp Resolution
- Typical Repeatability within 1 to 2 Counts of LSD, Even at Low End!
- Typical Useful Low End Down to 10 Amps!
- Automatic Recalibration for Dynamic Preview Keeps Preview within 1-2 Ammeter Counts.
- Integrated Eye Adaptation Timer on Operator Console
- NFPA 79 Compliant Electrical Panel
- 240VAC / 480VAC 60Hz Input with 1 Phase Main Power Transformer
- 54" Part Capacity Between Headstock and Tailstock with Copper Pads
- 12" Coil For Machines Up To 6,000A, Standard Coils Available Up to 30"
- Selectable AC, HWDC or FWDC Magnetizing Waveforms
- Automatic Decaying AC Demag Standard
- Adjustable Operator Control Panel for Operator Convenience
- Fully Variable Closed Loop Current Control
- Master Power Switch Located on Operator Control Panel
- Ventilator and White Light Switches Located On Operator Control Panel
- Maximum Current Limitation Safety
- Solid State Head and Coil Switching - No Contactors!
- Solid State De-mag Switching - No Reversing Contactors!
- All Sequencing Controlled by Single Electronic Logic Unit
- Pump Operated By Solid State Contactor
- Equipped With Power Line Safety Contactor Standard
- Equiped with Controlled Break Feature
- Shot Selector Switch, Supervisor Settable - Single or Dual Mag Shots
- Heavy Duty Solid Copper Busswork Throughout
- Automag Sequencing Control with Guarded Foot Switch
- Heavy Duty Pneumatic Headstock with Guarded Foot Switch
- Heavy Duty Crank Driven Tailstock
- Heavy-Duty 1" x 3" Solid Steel Bed Rails
- Heavy Duty Coil Carriage with Sealed Wheels
- Heavy Duty Hinged and Gasketed Front Doors with Twist Latches
- Heavy Duty Gasketed Rear Access Panels with Draw Latches
- 16 Ga. Stainless Steel Tank & Hip Bar Construction
- Hard Rock Maple Grates Front and Rear
- Pneumatic Filter, Pressure Regulator, Moisture Separator with Shut Off Valve Included
- Paint Cabinet Finish - Magwerks Tan Baked Industrial Powder Coating
- Operator's / Maintenance Manual (In English)
Custom Options
Please download the PDF attached for all our custom options.
For detailed requirements and specifications clarity, we encourage you to contact us directly or schedule a consultation with our technical team. Our experts are available to discuss your specific needs and provide tailored solutions for your magnetic particle inspection requirements.
Catalog Last Updated:
Note: Contact Us for Pricing*
Product Images

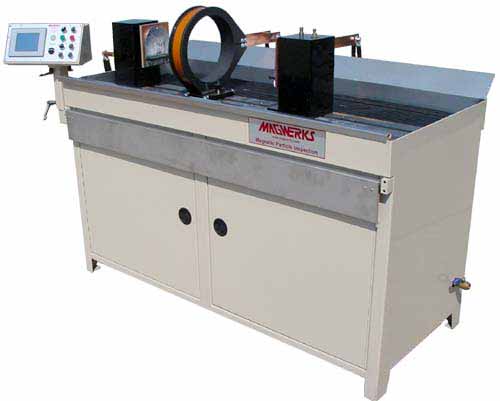

PSAF-546, 54" Wet Horizontal MPI Machine, 5000 Amp AC & HWDC, 6000 Amp FWDC
