PSAH-545, 54" Single-Vector Wet Horizontal Magnetic Particle Inspection Machine
(Model PSAH-545)
The Single-Vector Wet Horizontal Magnetic Particle Inspection Machine is designed for precise detection of surface and near-surface defects in ferromagnetic components. Using a controlled magnetic field in a single direction, it highlights cracks, seams, laps, and other discontinuities that may affect product quality.
In this system, the component is positioned horizontally and magnetized while a suspension of magnetic particles in a liquid carrier is applied. Any imperfections on or near the surface cause magnetic flux leakage, attracting the particles and forming visible indications of defects. The wet process ensures uniform coverage, excellent sensitivity, and reliable inspection results, even on complex geometries.
This single-vector configuration simplifies setup, reduces inspection time, and provides consistent performance for routine quality control operations. It is particularly suited for applications where defects are expected to align predominantly in one orientation—making it an efficient and cost-effective choice for production environments such as automotive, aerospace, and heavy engineering industries.
Standard Features
- Color Touch Screen with Virtual Instrumentation and Multiple Dynamic Ranges
- Ultra-Low Range Mode with a 1 Amp Resolution
- Typical Repeatability within 1 to 2 Counts of Least Significant Digit
- Typical Useful Low End Down to 10 Amps!
- Automatic Current Preview Recalibration Keeps Preview within 1-2 Ammeter Counts
- 240VAC/480VAC 60Hz 1-Phase Input, Optional Voltages Available
- 54" Part Capacity Between Headstock and Tailstock with Copper Pads
- 12" Coil For Machines Up To 6,000A - Standard Coils Available Up to 36"
- Selectable AC or HWDC Magnetizing Waveforms
- Automatic Decaying AC Demag
- Fully Variable, Closed Loop Current Control with Maximum Current Limitation
- Equipped with Controlled Break
- Solid State Demag Switching - No Reversing Contact
- Solid State Head / Coil Switching - No Contactors!
- Magnetizing Shot Selector Switch, Supervisor Selectable, Single or Dual Mag Shots
- Pump Operated By Solid State Contactor
- All Sequencing Controlled by Single Electronic Logic Unit
- Automag Sequencing Control with Guarded Foot Switch
- Master Power Switch Located on Operator Control Panel
- Adjustable Operator Control Panel for Operator Convenience
- Equipped With Power Line Safety Contactor
- Ventilator & White Light Switch Located On Operator Control Panel
- Hard Maple Grates Front and Rear - 54" Machine
- 16 Ga. Stainless Steel Tank & Hip Bar Construction
- Heavy-Duty 1" x 3" Solid Steel Bed Rails
- Heavy-Duty 1/4" x 2" and Larger Copper Buswork Throughout
- Heavy-Duty 4" Stroke Pneumatic Headstock with Guarded Foot Switch Actuation
- Paint Color - Magwerks Severe-Duty Sandalwood Baked On Powder Coating
- Heavy-Duty Coil Carriage with Sealed Wheels
- Heavy-Duty Crank Driven Tailstock
- Heavy-Duty Hinged & Gasketed Front Doors with Twist Latches
- Heavy-Duty Gasketed Rear Access Panels with Draw Latches
- Pneumatic Filter, Regulator, Moisture Separator with Shutoff Valve
- Operator's / Maintenance Manual (In English)
Custom Options
Please download the PDF attached for all our custom options.
For detailed requirements and specifications clarity, we encourage you to contact us directly or schedule a consultation with our technical team. Our experts are available to discuss your specific needs and provide tailored solutions for your magnetic particle inspection requirements.
Catalog Last Updated:
Note: Contact Us for Pricing*
Images

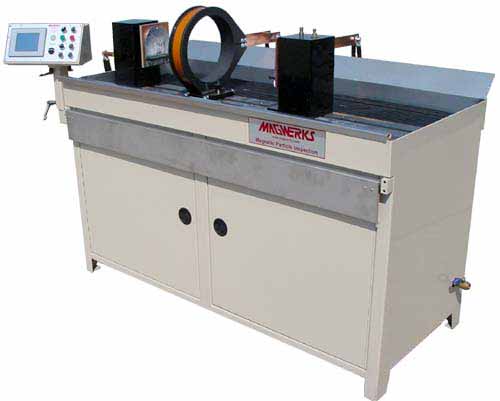

PSAH-545, 54" Single-Vector Wet Horizontal Magnetic Particle Inspection Machine
