PSAF-1006 Single Vector Wet Horizontal
(Model PSAF-1006)
The Single-Vector Wet Horizontal Magnetic Particle Inspection Machine is designed for precise detection of surface and near-surface defects in ferromagnetic components. Using a controlled magnetic field in a single direction, it highlights cracks, seams, laps, and other discontinuities that may affect product quality.
In this system, the component is positioned horizontally and magnetized while a suspension of magnetic particles in a liquid carrier is applied. Any imperfections on or near the surface cause magnetic flux leakage, attracting the particles and forming visible indications of defects. The wet process ensures uniform coverage, excellent sensitivity, and reliable inspection results, even on complex geometries.
This single-vector configuration simplifies setup, reduces inspection time, and provides consistent performance for routine quality control operations. It is particularly suited for applications where defects are expected to align predominantly in one orientation—making it an efficient and cost-effective choice for production environments such as automotive, aerospace, and heavy engineering industries.
Standard Features
- Selectable AC, HWDC or FWDC Magnetizing Waveforms
- Color Touch Screen with Virtual Instrumentation and Multiple Dynamic Ranges
- Typical Shot Repeatability within 1 to 2 Counts of LSD, Even at Low End Current Settings
- Ultra-Low Range Mode Now Standard with a 1 Amp Resolution
- Typical Useful Low End Operation Down to 10 Amps
- Automatic Preview Recalibration Keeps Shot Preview within 1-2 Ammeter Counts
- Eye Adaptation Timer Built In on Operator Panel Touch Screen
- 240VAC or 480VAC 60Hz Input, HD single winding secondary transformer
- 100" Part Capacity Between Headstock and Tailstock with Copper Pads
- 12" ID 5 Turn Coil Standard Optional Coils Available Up to 30" ID
- Automatic Decaying AC Demag Standard with Optional Reversing DC De-mag Available
- Digital Ammeter with Reading Hold Function, 1% Accuracy
- Adjustable Operator Control Panel for Operator Convenience
- Fully Variable - Closed Loop Current Control
- Master Power Switch Located on the Operator Control Panel
- Ventilator and White Light Switch Located On Operator Control Panel
- Maximum Current Limitation Safety Built In
- Solid State Head / Coil Switching - No Contactors
- Solid State Demag Switching - No Reversing Contactors
- All Sequencing Controlled by Single Electronic Logic Unit
- Pump Operated by a Solid State Contactor
- Equipped With Power Line Safety Contactor
- Equiped with Controlled Break
- Shot Selector Switch, Supervisor Settable for Single or Dual Mag Shots
- Heavy Duty Solid Copper Busswork Throughout
- Automag Sequencing Control with Guarded Foot Switch
- Heavy Duty Pneumatic Clamping Headstock with Guarded Foot Switch
- Heavy Duty Crank Driven Tailstock
- Heavy-Duty 1" x 3" Solid Steel Bed Rails
- Heavy Duty Coil Carriage with Sealed Wheels
- Heavy Duty Hinged & Gasketed Front Doors with Twist Latches
- Heavy Duty Gasketed Rear Access Panels with Draw Latches
- 16 Ga. Stainless Steel Tank & Hip Bar Construction
- Hard Rock Maple Grates Front and Rear
- Pneumatic Filter, Regulator, Moisture Separator with Lockout Valve Included
- Cabinet Finish Magwerks Tan Baked Industrial Powder Coating
- Includes Operator's / Maintenance Manual (In English)
Custom Options
Please download the PDF attached for all our custom options.
For detailed requirements and specifications clarity, we encourage you to contact us directly or schedule a consultation with our technical team. Our experts are available to discuss your specific needs and provide tailored solutions for your magnetic particle inspection requirements.
Catalog Last Updated:
Note: Contact Us for Pricing*
Images

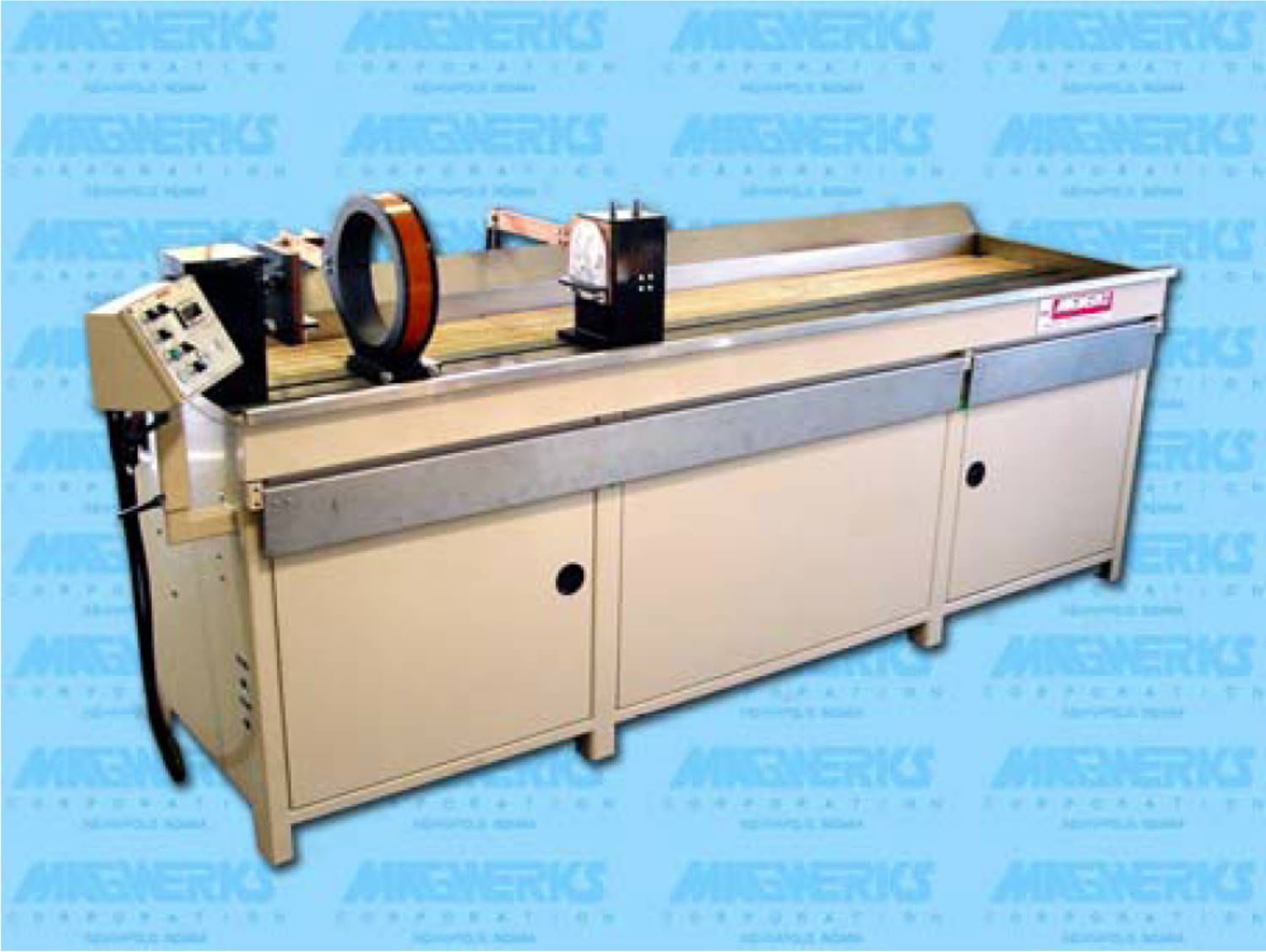

PSAF-1006 Single Vector Wet Horizontal
