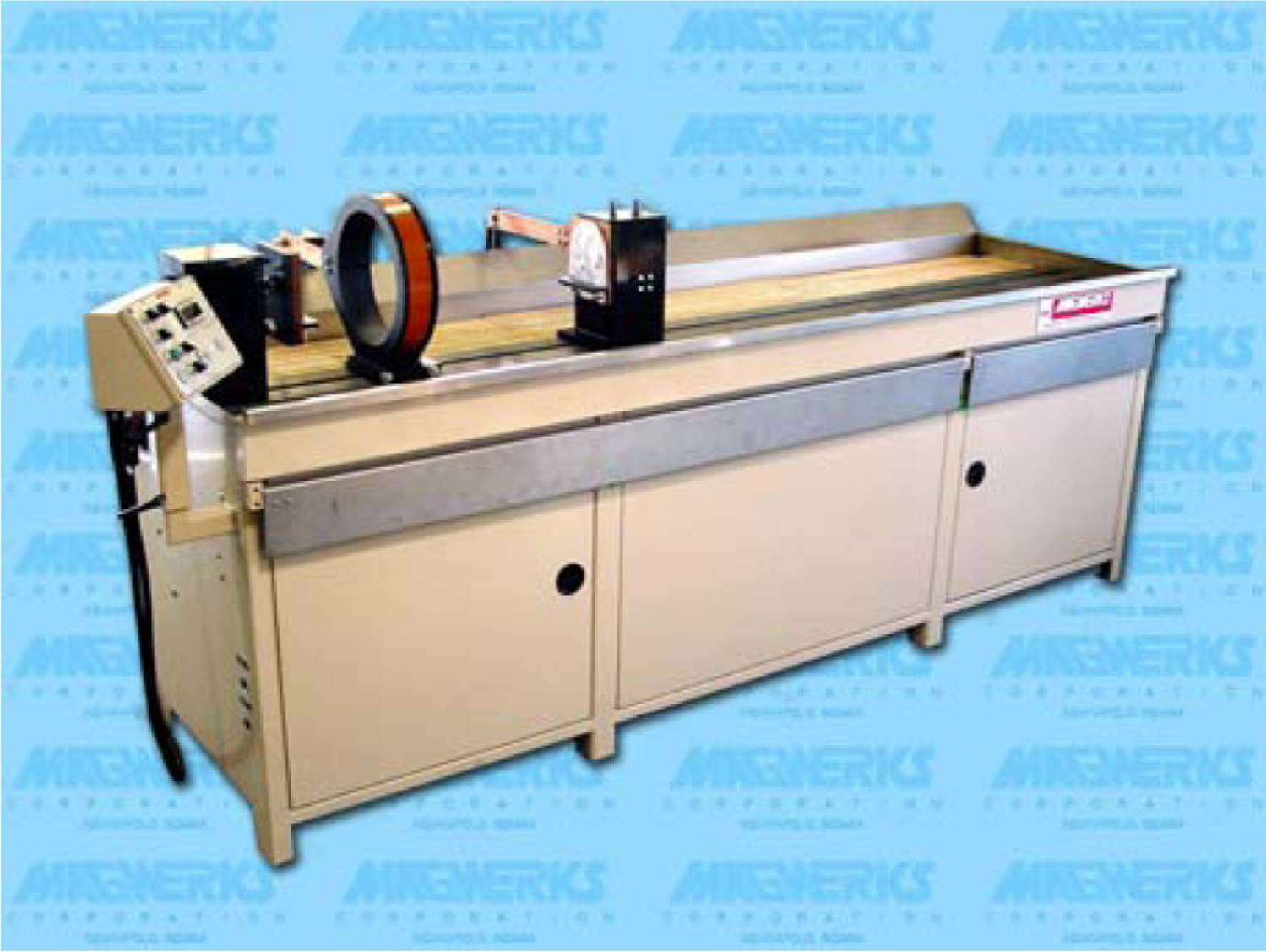

The Single-Vector Wet Horizontal Magnetic Particle Inspection Machine is designed for precise detection of surface and near-surface defects in ferromagnetic components. Using a controlled magnetic field in a single direction, it highlights cracks, seams, laps, and other discontinuities that may affect product quality.

In this system, the component is positioned horizontally and magnetized while a suspension of magnetic particles in a liquid carrier is applied. Any imperfections on or near the surface cause magnetic flux leakage, attracting the particles and forming visible indications of defects. The wet process ensures uniform coverage, excellent sensitivity, and reliable inspection results, even on complex geometries.

This single-vector configuration simplifies setup, reduces inspection time, and provides consistent performance for routine quality control operations. It is particularly suited for applications where defects are expected to align predominantly in one orientation—making it an efficient and cost-effective choice for production environments such as automotive, aerospace, and heavy engineering industries.

Standard Features

• Inspector Eye Adaption Timer Built In
• Color Touch Screen with Virtual Instrumentation and Multiple Dynamic Ranges
• Multiple Dynamic Ranges Give Precise User Current Control
• Typical Repeatability within 1 to 2 Counts of LSD
• Typical Useful Low End Operation Down to 10 Amps
• 3-Turn Current Control Pot with Amperage Preview for Easy Current Adjustment
• Automatic Preview Recalibration Keeps Preview within 1-2 Ammeter Counts
• Virtual Ammeter with Reading Hold Function Better Than 1% Accuracy
• Multi-Range Ammeter with Low Range Resolution of 1 Ampere
• Fully Variable - Closed Loop Current Control with Controlled Break Feature
• Maximum Current Limitation Safety Control Built In
• Automatic Amperage Preview Function
• Equipped with a Solid State Controlled Break Feature
• 100" Part Capacity Between Headstock and Tailstock
• 480VAC 60Hz 1-Phase Input from a 3-Phase Service is Standard
• 16" Coil For Machines Up To 6,000A, Optional Coils Available Up to 30"
• Selectable AC, HWDC or FWDC Magnetizing Waveforms
• Automatic Decaying AC Demag Included
• Automatic Reversing DC Demag Included
• Solid State Head / Coil Switching - No Contactors!
• Solid State Demag Switching - No Reversing Contactors!
• Adjustable Operator Control Panel for Operator Convenience
• Master Power Switch Located on Operator Control Panel
• Ventilator & White Light Switch Located On Operator Control Panell for Ease of Use
• Stainless Steel Bath Pump
• All Sequencing is Controlled by a Single Electronic Logic Unit
• Circulating Pump Operated By a Solid State Contactor
• Equipped Standard with a Power Line Safety Contactor
• Magnetizing Pulse Selector Switch, Settable for Single or Dual Mag Shots
• Heavy Duty Copper Busswork Throughout
• Heavy Duty Copper Frame Feed-Thrus, No Secondary Cables Feeding Thru Frame
• Heavy Duty Dual Copper 250MCM Secondary Headstock and Tailstock Cables
• Heavy Duty Dual Copper 250MCM Secondary Coil Cables
• Automag Sequencing Control with Guarded Foot Switch
• Heavy Duty Pneumatic Headstock with Guarded Foot Switch
• Heavy Duty Crank Driven Tailstock
• Heavy-Duty 1" x 3" Solid Steel Bed Rails
• Heavy Duty Coil Carriage with Sealed Wheels
• Heavy Duty Hinged & Gasketed Front Doors with Twist Latches
• Heavy Duty Gasketed Rear Access Panels with Draw Latches
• 16 Ga. Stainless Steel Tank & Hip Bar Construction
• Hard Rock Maple Grates Front and Rear Standard
• Pneumatic Filter, Regulator, Moisture Separator with Lockout Valve Included
• Swing Away Hood, White Light and Powered Ventilator Assembly Standard
• Paint Color - Magwerks Tan Baked Industrial Powder Coating
• Operator's / Maintenance Manual (In English) 1 Paper Copy and 1 Electronic

Custom Options

Catalog Last Updated:

Download PSAF1006MIL.pdf

Note: Contact Us for Pricing*
