MV-3926 3-Vector, 92" Multi-Directional Wet Horizontal MPI Machine
(Model MV-3926)
The Multi-Directional Wet Horizontal Magnetic Particle Inspection Machine is an advanced system designed for comprehensive detection of surface and near-surface discontinuities in ferromagnetic components. Unlike single-vector systems, it can generate magnetic fields in multiple directions, allowing complete inspection of parts with complex geometries or varied flaw orientations in a single cycle.
In this setup, components are positioned horizontally and magnetized while suspended in a liquid carrier containing magnetic particles. When magnetic flux leakage occurs at discontinuities, the particles are drawn to those areas, forming visible indications of defects. The wet process ensures uniform particle flow, high sensitivity, and consistent coverage across the entire part surface.
This machine is ideal for high-volume production and critical inspection applications across industries such as aerospace, automotive, and heavy engineering, where accuracy, repeatability, and full-coverage testing are essential. Its multi-directional magnetization capability provides superior flaw detection efficiency and significantly reduces inspection time.
Standard Features
- Color Touch Screen with Virtual Instrumentation and Multiple Dynamic Ranges
- Ultra-Low Range Mode Now Standard with a 1 Amp Resolution
- Typical Repeatability within 1 to 2 Counts of LSD, Even at Low End!
- Typical Useful Low End Down to 10 Amps!
- Automatic Preview Recalibration Keeps Preview within 1-2 Ammeter Counts
- Independent Ammeters with Reading Hold Function, 1% Accuracy
- 240VAC / 480VAC 60Hz 3-Phase Input
- Output 6,000 Amps Maximum, Contact Vector FWDC
- 92" Part Capacity Between Headstock and Tailstock with Copper Pads
- 12" Air Core Coil, Standard Coils Available Up to 30"
- AC - HWDC- FWDC Selectable Magnetizing Waveforms
- Fully Variable - Closed Loop Current Control with Controlled Break Feature
- Adjustable Operator Control Panel for Operator Convenience
- Master Power Switch Located on Operator Control Panel
- Ventilator & White Light Switch Located On Operator Control Panel
- Maximum Current Limitation
- Solid Statel Switching Between Vectors
- Can Be Operated In Coil, Contact, Booster or Multi-Directional Modes
- Solid State Demag Switching - No Reversing Contact
- All Sequencing Controlled by Single Electronic Logic Unit
- Automatic Decaying AC Demag Standard
- Pump Operated By Solid State Contactor
- Equipped With Power Line Safety Contactor
- Equiped with Controlled Break
- Shot Selector Switch, Supervisor Settable - Single or Dual Mag Shots
- Heavy Duty Copper Busswork Throughout
- Automag Sequencing Control with Guarded Foot Switch
- Heavy Duty Pneumatic Headstock with Guarded Foot Switch
- Headstock Weight Load is Transfered To a Roller Slide- No Weight on the Cylinder!
- Heavy Duty Crank Driven Tailstock
- Heavy-Duty 1" x 3" Solid Steel Bed Rails
- Heavy Duty Coil Carriage with Sealed Wheels
- Heavy Duty Hinged & Gasketed Front Doors with Twist Latches
- Heavy Duty Gasketed Rear Access Panels with Draw Latches
- 16 Ga. Stainless Steel Tank & Hip Bar Construction
- Hard Maple Grates Front and Rear
- Pneumatic Filter, Regulator, Moisture Separator with Lockout Valve Included
- Paint Color - Magwerks Tan Baked Powder Coating
- Operator's / Maintenance Manual (In English)
- Standard Features, Options and Specifications Subject to Change Without Notice
Custom Options
Please download the PDF attached for all our custom options.
For detailed requirements and specifications clarity, we encourage you to contact us directly or schedule a consultation with our technical team. Our experts are available to discuss your specific needs and provide tailored solutions for your magnetic particle inspection requirements.
Catalog Last Updated:
Note: Contact Us for Pricing*
Images

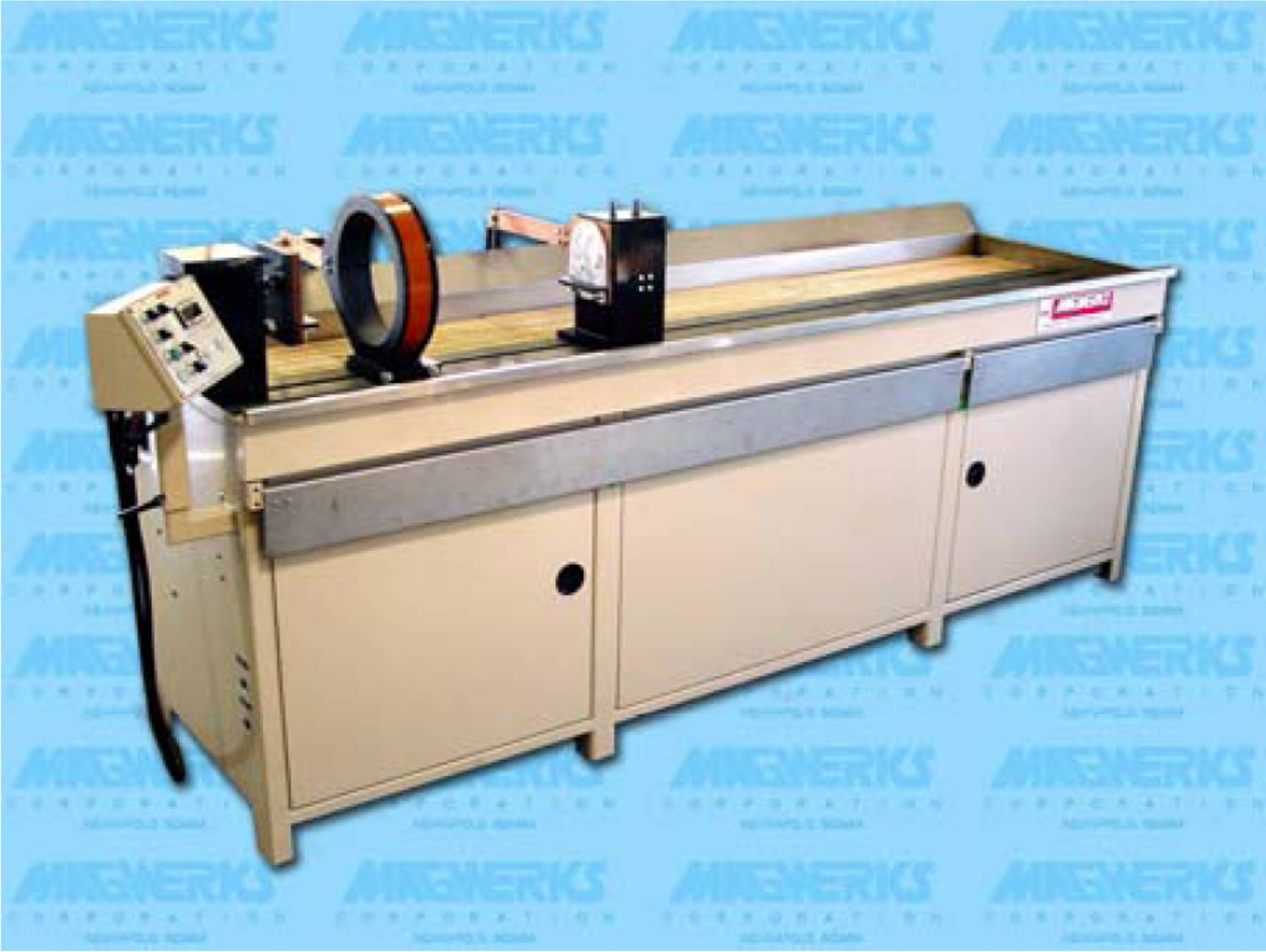

MV-3926 3-Vector, 92" Multi-Directional Wet Horizontal MPI Machine
